JetBrains DataGrip Explain Plan

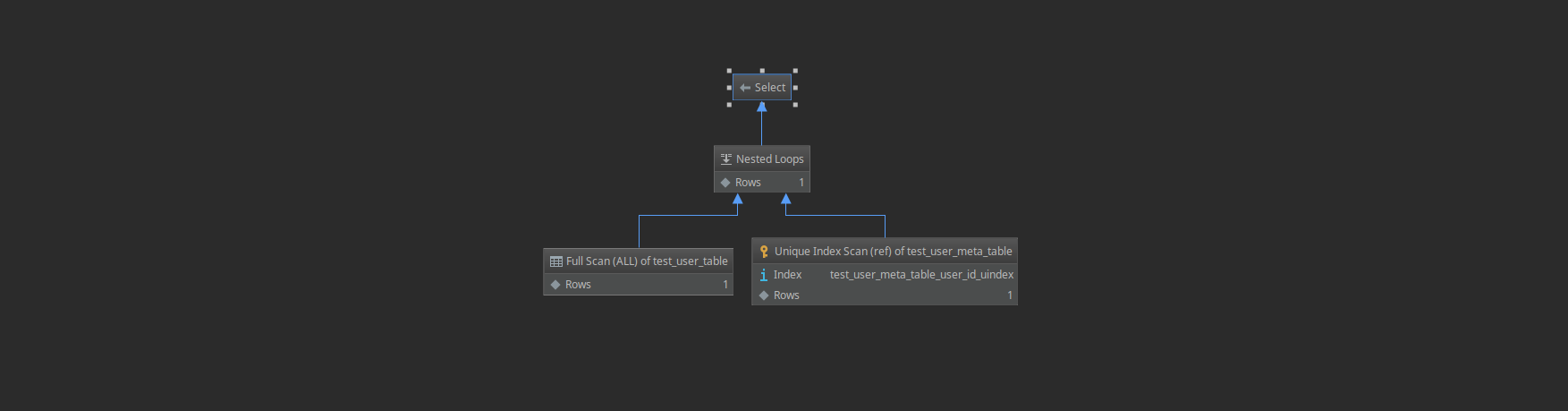

I worked on a small task lately that requires me to improve the performance of page loading or the query loading of that page. I jumped right into it and tried to find ways to analyze my query and since I’m using DataGrip already for DB related stuff, I decided to check what they have for analyzing queries. Apparently, they have this thing called Explain Plan which if you’re familiar with MySQL is not different. but, they just try to visualize it differently or show it in a different way. So, Basically, I’m going to explain how MySQL Exaplin works and that should be enough for you to understand what DataGrip is showing you.

With no more additional intros lets dive right into it.

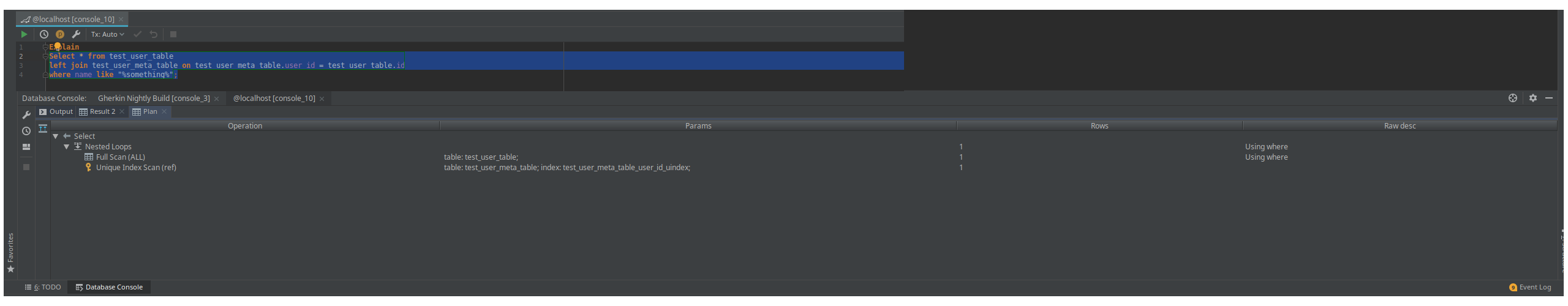

What is `Explain Plan`

What’s the output table of explain plan

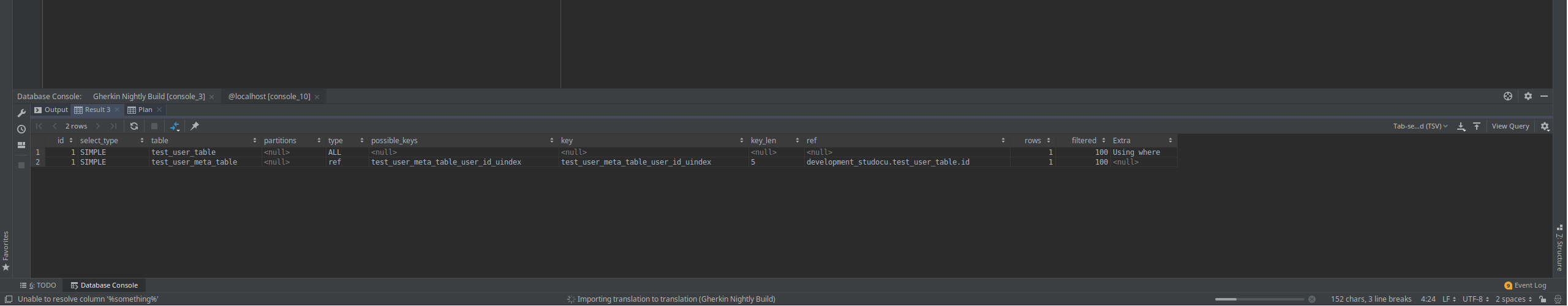

If you run the Explain part you can see better info, like the ones below:

Now let’s explain whats inside that table.

Table Columns and explanations

**ID **This id will represent the id of the statement MySQL is going to execute in order. if you have a normal query you will see only 1. but, if you have a joined query and a subquery you will notice it will show you main query then subquery 2nd then the join 3rd. important to know the order ;).
Select Type As for this, It could have one of the following values (the [] is the focus): — SubQuery: ex. (select actor_id, [select … from..etc] as something from the table) — Derived: ex. select * from [select * from something_else] — Union: join, union or such commands — Union Result: the place where it joins the results of all joins.
Table This will refer to the table it’s getting the data from for current query, sometimes it says instead of the table name meaning that this join will wait for its internal command id=4 as a table to get data from. usually, its always like that for join commands.
Type Some say its called access_type , and those types are: — ALL: find data in the table through normal scan (normal select queries) — index: find data through an indexed column (nice to be this way) — range: meaning it can limit the results based on the indexed column and take a range (fast query) — ref: meaning this will match a ref from other tables — eq_ref: if the ref to a unique key, meaning it will stop the moment it matches a row — const, system: matches a const (very fast usually)
Possible Keys This will try to take all the columns used in the query and use them as possible columns to filter upon or use for execution.
Key The one index that MySQL decided to use to optimize the access of the wanted data.
**Key_len **The number of bytes MySql will use in the index. based on this value you can either play with your query to reduce the effect or change the structure of your tables to a better one if you weren’t using the allocated bytes in your table.
**Ref **This shows which columns or constants are being used to lookup values in the index name in the key column.
**Rows **The number of rows MySQL estimate it will need to read to find the desired row.
Filtered The percentage of rows that will be filtered by using where conditions or things like that. if you multiply this with rows you will get how many rows this query will return to preceding queries.
**Extra **This contains some extra variant data like ( Using index, Using where..) which shows how the filtering and data picking is going to happen. read more about it in the documentation.
